Item # bci3948960

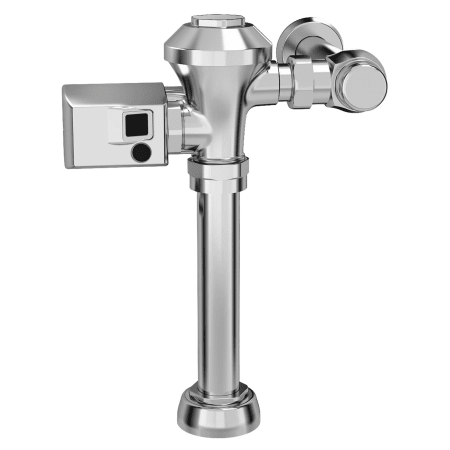

American Standard Ultima 1.28 GPF Electronic Toilet Flushometer for 1-1/2" Top Spud with DynaClean and EvoLast Technologies

Model: 6147SM121.002

$288.34
Finish: Choose Finish
  • Polished Chrome
    Polished Chrome
    $288.34
    Special Order

Free Shipping!

Special Order

Product Overview

American Standard 6147SM.121 Features:

  • Hands-free infrared sensor-operated gear actuator with metal housing
  • Angled sensor delivers reliable flush even with toilet seat in raised position
  • DynaClean wiper spring technology significantly reduces maintenance and downtime
  • Premium, chlorine resistant EvoLast diaphragm material prevents premature deterioration and failure
  • Dezincification-resistant brass alloy
  • Electronic courtesy flush button
  • Optional sanitary flush for an automatic flush after 24 hours of non-use
  • Features a low battery indicator with a yellow LED light that flashes when batteries need to be replaced

American Standard 6147SM.121 Technologies and Benefits:

  • DynaClean: An exclusive wiper spring positioned at the refill orifice where clogs form. The wiper spring eliminates build-up by clearing the refill orifice with every flush, preventing valve run-on and water waste. The integral wiper spring keeps the orifice clear of debris and mineral build-up for improved performance and less maintenance.
  • EvoLast: A premium, chlorine-resistant diaphragm material that delivers consistent performance and resists premature deterioration and failure.

American Standard 6147SM.121 Specifications:

  • Height: 14-5/8" (top to bottom)
  • Width: 5-13/16" (left to right)
  • Depth: 1-1/2" (front to back)
  • Flow Rate (GPF): 1.28 gallons-per-flush
  • Spud Connection Size: 1-1/2"

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Depth
1.5 in.
Gallons Per Flush
1.28
Height
14.625 in.
Product Weight
6.2 lbs.
Spud Size
1.5 in.
Width
5.8125 in.

Included Components

Handles Included
No
Valve Included
Yes

Characteristics and Features

Battery Quantity
4
Control Type
Electronic
Electronic
Yes
Installation Type
Wall Mounted
Material
Brass
Number Of Handles
0
Spud Placement
Top
Tech Features
Auto Flush
Water Efficient
No

Electrical and Operational Information

Battery Type
Alkaline
Power Source
Battery

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.19.2
ASSE Code
1037
CA Drought Compliant
Yes
Certifications
ASSE, ANSI, ASME
Collection
Ultima
Country Of Origin
Mexico
Manufacturer Warranty
Limited Lifetime
TX Drought Compliant
Yes
WaterSense Certified
Yes
