Item # bci3411682

The American Standard A8003L-LHO.020 has been discontinued

** See similar or replacement items below **

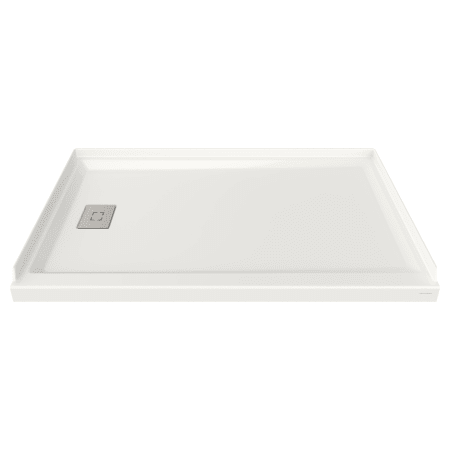

American Standard Studio 36" L x 60" W Shower Base with Single Threshold and Left Drain

Model: A8003L-LHO.020

from the Studio Collection
Discontinued
We still have product details and accessories, scroll down to see them!

Product Overview

American Standard A8003L-LHO Features:

  • Covered under American Standard's limited lifetime warranty
  • Constructed from acrylic for reliability
  • Shower base reinforced with fiberglass
  • Integrated tile flanges make installation and waterproofing a breeze
  • Raised edges prevent water leakage over the pre-existing threshold
  • Low threshold provides for ease of access
  • Drain plate included
  • Drain assembly sold separately
  • Made in America
  • Note: Shower bases are commonly referred to as shower trays, shower receptors, shower floors, or shower pans

American Standard A8003L-LHO Specifications:

  • Height: 4" (top to bottom)
  • Width: 60" (left to right)
  • Length: 36" (front to back)
  • Number of Curbs: 1 (total number of finished sides)
  • Number of Tile Flanges: 3 flanges
  • Installation Type: Alcove
  • Drain Placement: Left
  • Drain Size: 3-1/4" (diameter of drain outlet)

Product Variations:

  • A8003L-LHO (This Model): Shower Base with Left Drain
  • A8003L-RHO: Shower Base with Right Drain

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Drain Connection
3.25 in.
Height
4 in.
Length
60 in.
Nominal Length
60 in.
Nominal Width
36 in.
Product Weight
63.4 lbs.
Width
36 in.

Included Components

Tile Flange
Yes

Characteristics and Features

Curb Location
Front
Drain Placement
Left
Installation Type
Alcove
Material
Acrylic
Number Of Curbs
1
Number of Thresholds
1
Number of Tile Flanges
3
Shape
Rectangular
Theme
Traditional

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
Certifications
CSA, UPC
Country Of Origin
USA
CSA Code
B45.5
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
