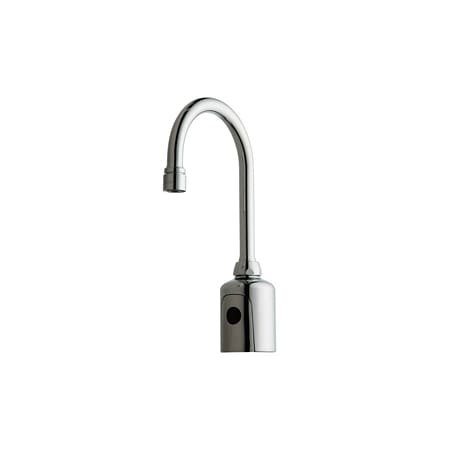

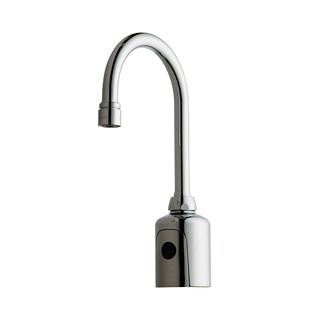

Chicago Faucets Sensor Activated, Single Supply (Pre-Tempered) Touchless Faucet with Gooseneck Cast Brass Spout and Field Adjustable Modes and Ranges. Battery Powered.

Chicago Faucets116.203.AB.1 Features:

• Manufactured and assembled in the United States of America
• Faucet body and handles are covered under Chicago Faucet's limited lifetime warranty
• Constructed of solid brass
• High quality chrome plated finish - finish covered under warranty for a year
• Electronic sensor operation - pre set timer output
• Metering adjustable cycle time closure cartridge - covered under 5-year warranty
• Installs in a single hole configuration
• ADA compliant
• Low lead compliant - meeting federal and state regulations for lead content

The Chicago Faucets Benefit:

• Commercial Grade Faucet: When a product is marked as "commercial grade" it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry's highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
• ECAST Construction: With the threat of lead pollution in the public’s supply of drinking water, Chicago Faucets was one of the industry’s first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.

Chicago Faucets 116.203.AB.1 Specifications:

• Overall Height: 11-1/4" (measured from mounting surface to highest point on faucet)
• Spout Height: 6-7/8" (measured from mounting surface to spout outlet)
• Spout Reach: 5-3/8" (measured from center of faucet base to center of spout outlet)
• Required Installation Holes: 1
• Flow Rate: 0.5 gallons-per-minute
• Mounting Configuration: Single Hole
• Maximum Deck Thickness: 1-1/2"
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140 - degrees Fahrenheit
• Electronic sensor included with faucet
• 1/2" connection - designed for use with standard U.S. plumbing supply bibs

Codes and Compliance:

• ASME A112.18.1/CSA B125.1
• Certified to NSF/ANSI 61, Section 9 by CSA
• California Health and Safety Code 116875 (AB1953-2006)
• Vermont Bill S.152
• NSF/ANSI 372 Low Lead Content
• ADA ANSI/ICC A117.1
