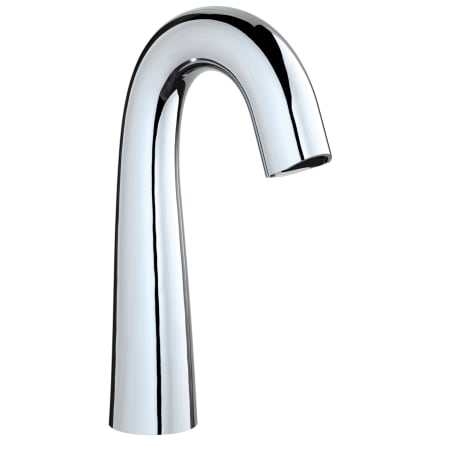

Chicago Faucets EQ High Arc 0.5 GPM Single Hole Metering Faucet - Includes Infrared Sensor

EQ High Arc series lavatory sink faucet with hands free infrared detection, high arc spout, single hole application, dual supply for hot and cold water service with a concealed thermostatic mixing valve and 0.5 GPM vandal proof pressure compensating Econo-flo non-aerating spray, 20 second standard maximum run time. Powered by a Long Term Power System(LTPS)-DC.

Chicago Faucets EQ-C11A-63AB Features:

• Covered under Chicago Faucet's limited lifetime warranty
• Faucet body constructed of solid brass ECAST material
• Coordinates with products from the EQ line seamlessly
• Touchless, motion-activated faucet
• Single hole installation
• Includes a concealed mechanical mixing valve
• ADA compliant
• Low lead compliant
• Mounting hardware not included

Technologies and Benefits:

• Commercial Grade Faucet: When a product is marked as "commercial grade" it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry's highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.

• ECAST Construction: With the threat of lead pollution in the public's supply of drinking water, Chicago Faucets was one of the industry's first to take the lead in finding a solution. These faucets are made of the same durable, high quality materials and fittings as always, however they are manufactured with .25% or less total lead content by weighted average. This means their faucets not only meet the strict guidelines first introduced by states like California and Virginia, but it surpasses those standards, coming as close to truly lead-free as possible.

Chicago Faucets EQ-C11A-63AB Specifications:

• Height: 6"
• Spout Height: 6"
• Spout Reach: 2-3/8"
• Flow Rate: 0.5 GPM (gallons-per-minute)
• Faucet Holes: 1
• Faucet Centers: single hole
• Max Deck Thickness: 1-1/2"

Codes and Compliance:

• ASME A112.18.1/CSA B125.1
• California Health and Safety Code 116875 (AB 1953-2006)
• Vermont Bill S. 152
• Louisiana Low Lead Law HB. 471
• NSF/ANSI 372 Low Lead Content
• Certified to NSF/ANSI 61, Section 9 by CSA
• ADA ANSI/ICC A117.1
