Item # bci4049696

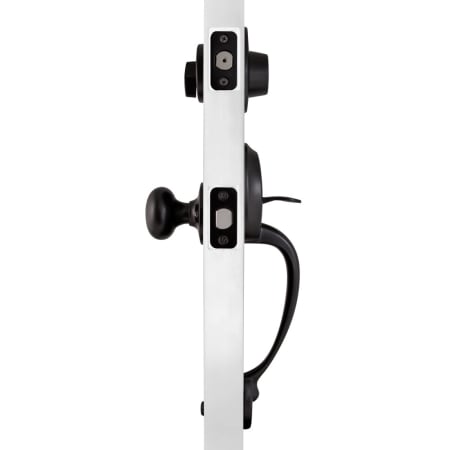

Design House Coventry Sectional Single Cylinder Keyed Entry Handleset with Cambridge Knob

Model: 778969

from the Coventry Collection
$122.22
Finish: Choose Finish
  • Matte Black
  • Matte Black
    Matte Black
    $122.22
    Special Order

Free Shipping!

Special Order
Configure Your Design House 778969 Coventry Sectional Single Cylinder Keyed Entry Handleset with Cambridge Knob
  • Free Keying Option

    Free Keying Option

    Select "Keyed Alike" to use the same key on multiple locks, "Keyed Different" for unique keys, or enter a key code (Typically a 5 digit number) to match this lock to pre-owned locks. Locksmiths can identify key codes on pre-owned locks.

    Please Select One
$122.22

Product Overview

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Single-CylinderSingle Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.

Features:

  • BHMA grade 3 security
  • Constructed from solid brass for strength and durability
  • Easy to install with all necessary mounting hardware included
  • Covered by a 5 year limited warranty

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Cylinder: 5 Pin
  • Door Thickness: 1-1/2", 1-3/4", 1-3/8", 1-5/8"
  • Edge Bore: 1"
  • Grip Center to Center: 8.19
  • Handing: Reversible
  • Handle Projection: 2.28
  • Latch Faceplate: Round Corner
  • Material: Brass
  • Overall Height: 12
  • Product Weight: 3.9
  • Trim Height: 2.63
  • Trim Width: 2.63

This product is listed under the following manufacturer number(s):

Manufacturer Resources

Dimensions and Measurements

Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Grip Center to Center
8.19 in.
Handle Projection
2.28 in.
Interior Handle Length
2.36 in.
Interior Handle Projection
2.81 in.
Interior Trim Height
2.63 in.
Interior Trim Width
2.63 in.
Overall Height
12 in.
Product Weight
3.9 lbs.
Trim Height
2.63 in.
Trim Width
2.63 in.

Included Components

Cylinder Included
Yes
Interior Included
Yes

Characteristics and Features

Adjustable Throughbolt
No
Concealed Screws
No
Cylinder
5 Pin
Cylinder Type
Single Cylinder
Function
Keyed Entry
Handing
Left, Reversible, Right
Handle Material
Metal
Handle Style
Grip
Interconnected
No
Interior Handle Style
Knob
Keyway
KW1
Latch Faceplate
Round Corner
Lock Style
Single Point
Material
Brass
Mount
Sectional
Solid Construction
Solid Brass
Theme
Modern

Manufacturer Technology

SmartKey
No

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
BHMA Certification
Grade 3
Certifications
ANSI
Collection
Coventry
Country Of Origin
China
Manufacturer Warranty
5 Year Limited
