Item # bci3048432

DreamLine Flex 74-3/4" High x 32" Wide x 32" Deep Pivot Framed Shower Enclosure with Clear Glass, 32" Deep x 32" Wide Shower Base, and Return Panel

Model: DL-6714-88-01CL

$1,119.99
Finish: Choose Finish
  • Chrome
    Chrome
    $1,119.99
    24 In Stock

Free Shipping on LTL freight orders over $1,499.00!

Leaves the Warehouse in 2 to 4 business days
24 In Stock

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

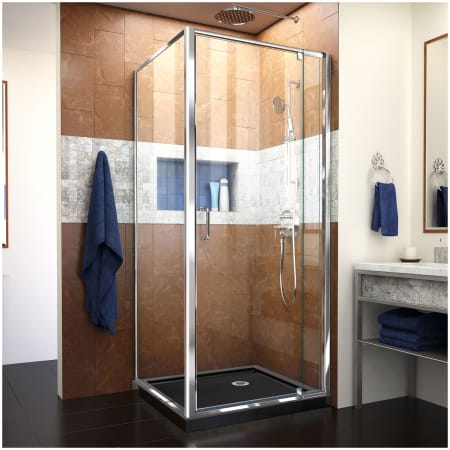

The DreamLine Flex pivot shower enclosure and SlimLine base kit offers modern appeal at a budget friendly price point. The versatile Flex model combines cutting-edge pivot hardware, simple installation and dependable performance. Complete your bathroom with the elegant and innovative look of the Flex shower enclosure and SlimLine base kit from DreamLine for the complete solution for your shower project.

DreamLine DL-6714-88CL Features:

  • IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
  • Items included: Flex shower door with return panel and 32" x 32" Double threshold shower base
  • Overall Kit Dimensions: 32" D x 32" W x 74-3/4" H

Flex shower door:

  • 30-1/2" D x 28-7/16 to 32-7/16" W x 72" H
  • Anodized aluminum wall profile allows a 1" width (horizontal) or out-of-plumb (vertical) adjustment

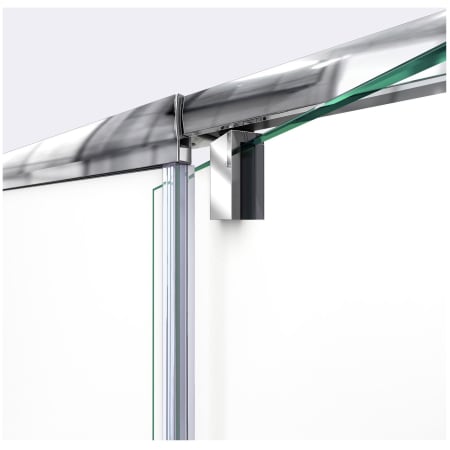

  • Cutting-edge expandable rails and pivot hardware allows a 3" width (horizontal) adjustment
  • Model consists of a single pivot door, one stationary inline panel and one stationary return panel
  • Reversible for right or left door opening installation
  • 1/4" (6mm) thick clear tempered glass
  • Door Walk-In: 18-7/8"
  • Stationary Panel(s): 6-9/16"
  • Return Panel: 30-1/2"
  • Magnetic strip for water tight door closure
  • Professional installation recommended

32" x 32" Double Threshold Shower Base:

  • High quality scratch and stain resistant acrylic
  • Slip-resistant textured floor for safe showering
  • Black finish
  • Integrated tile flange for easy installation and waterproofing
  • Fiberglass reinforcement for durability
  • cUPC certified
  • Drain is not included
  • Materials: Tempered glass, aluminum, acrylic
  • Tempered glass
  • Finished walls required for measurement and installation


This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Depth
32 in.
Door Width
18.875 in.
Glass Thickness
.25 in.
Height
74.75 in.
Nominal Width
32 in.
Panel Width
30.5, 6.5625 in.
Product Weight
219 lbs.
Shower Door Width
18.875 in.
Width
32 in.

Included Components

Base Included
Yes
Drain Assembly Included
No
Tile Flange
Yes

Characteristics and Features

Configuration
Shower Enclosure
Curb Location
Left, Right
Door Swing
Reversible, Left, Right
Door Type
Hinged
Drain Placement
Center
Frame Type
Frameless
Glass Features
Clear Glass
Installation Type
Corner
Material
Aluminum, Tempered Glass, ABS, Acrylic
Number Of Curbs
2
Number Of Doors
1
Number of Thresholds
2
Number of Tile Flanges
2
Shape
Square
Slip Resistant
Yes
Theme
Modern

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UPC, ANSI
Collection
Flex
Commercial Warranty
1 Year Limited
Country Of Origin
China
Manufacturer Warranty
Limited Lifetime
