Item # bci1149009

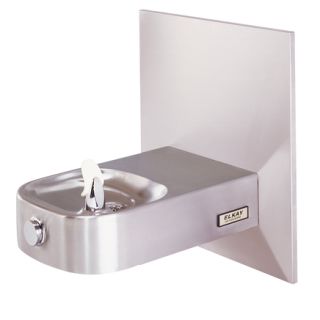

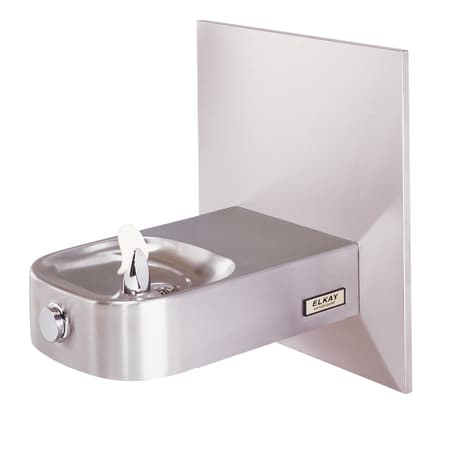

Elkay Child ADA Wall Mount Single Level Slimline Fountain with Wall Plate, Freeze Protection and Access Panel

Model: ECDFPW314FPK

$2,028.75
Finish: Choose Finish
  • Stainless Steel
    Stainless Steel
    $2,028.75
    1 In Stock

Free Shipping!

Leaves the Warehouse Thursday, December 26th
1 In Stock

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

Elkay Child ADA Wall Mount Single Level Slimline Fountain with Wall Plate, Freeze Protection and Access Panel

Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.

Product Features:

  • Wall mounted drinking fountain
  • Contoured basin to minimize splashing
  • Flexi-Guard safety bubbler to prevent injury
  • Keyed in location to prevent rotation
  • Vandal-resistant push bar, and bottom cover plate
  • Flow regulator provides constant stream from 20 to 105 psi water pressure
  • ADA compliant
  • No lead design
  • Stainless steel wall plate with surface mounting plate and vandal-resistant bottom cover plate included
  • Stainless steel wall plate

Product Specifications:

  • Base Flow Rate: 0
  • Rated Watts: 0
  • Full Load Amps: 0
  • Shipping Weight: 20 lbs
  • Fountain Type: Standard
  • Installation Type: Wall
  • Hands Free Operation: No
  • Voltage: 0
  • Height: 28-3/8"
  • Width: 19-3/4"
  • Depth: 18-3/4"

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Gauge
18
Height
20.375 in.
Inlet Diameter
.375 in.
Length
19.75 in.
Outlet Diameter
1.25 in.
Product Weight
41 lbs.
Water Pressure (Max)
105 PSI
Water Pressure (Min)
20 PSI
Width
19.375 in.

Included Components

Bottle Filler Included
No
Cooling Unit
No

Characteristics and Features

Antimicrobial
Yes
Bi-Level
No
Control Type
Push Button
Filtered
No
Freeze Resistant
Yes
Installation Type
Wall Mounted
Material
Stainless Steel
Number of Stations
1
Pet Friendly
No
Vandal Resistant
No

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.19.3
Certifications
NSF, ANSI, ASME, UL
Collection
Slimline, Soft Sides
Lead Leaching Certified NSF/ANSI 61
Yes
Location Rating
Wet Location
Made in America
Yes
Manufacturer Warranty
1 Year Limited
Outdoor Approved
Yes
