Item # bci1149045

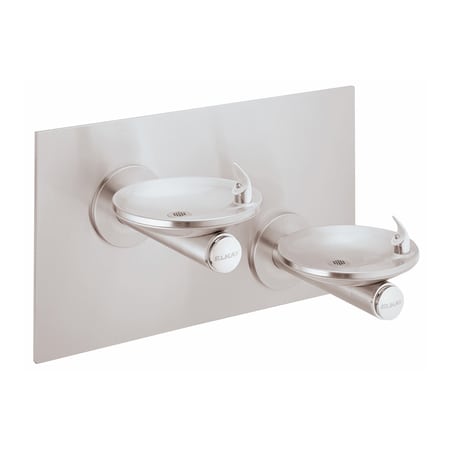

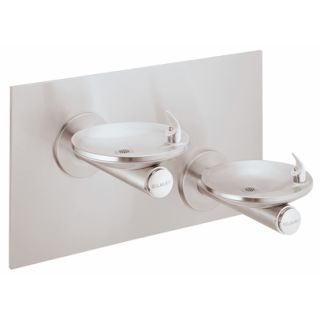

Elkay ADA Reverse Wall Mount Bi-Level Swirlflo Fountain with Access Panel and Cane Apron

Model: EDFPB117RAC

$2,824.50
Finish: Choose Finish
  • Stainless Steel
  • Stainless Steel
    Stainless Steel
    $2,824.50
    Special Order

Free Shipping!

Leaves the Warehouse in 7 to 11 weeks
Special Order

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

  • Mounting Kit
    Mounting Kit Recommended
  • Water Filter
    Water Filter Recommended

Elkay ADA Reverse Wall Mount Bi-Level Swirlflo Fountain with Access Panel and Cane Apron

Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.

Product Features:

  • Two-Level Wall mounted drinking fountain
  • Contoured basin to minimize splashing
  • Flexi-Guard safety bubbler to prevent injury
  • Vandal-resistant front bush button
  • Flow regulators provides constant stream from 20 to 105 psi
  • ADA compliant
  • No lead design

Product Specifications:

  • Base Flow Rate: 0
  • Rated Watts: 0
  • Full Load Amps: 0
  • Shipping Weight: 56 lbs
  • Fountain Type: Standard
  • Installation Type: Wall
  • Hands Free Operation: No
  • Voltage: 0
  • Height: 21-15/16"
  • Width: 38-1/2"
  • Depth: 18-3/8"
  • Vandal Resistant Bubbler: No
  • Freeze Protection: No
  • Glass Filler: No

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Gauge
18
Height
21.9375 in.
Inlet Diameter
.375 in.
Length
38.5 in.
Outlet Diameter
1.25 in.
Product Weight
56 lbs.
Water Pressure (Max)
105 PSI
Water Pressure (Min)
20 PSI
Width
19 in.

Included Components

Bottle Filler Included
No
Cooling Unit
No

Characteristics and Features

Antimicrobial
Yes
Bi-Level
Yes
Bubbler Type
FlexiGuard Safety
Control Type
Push Button
Filtered
No
Freeze Resistant
No
Installation Type
Wall Mounted
Material
Stainless Steel
Number of Stations
2
Pet Friendly
No
Vandal Resistant
No

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.19.3
Certifications
NSF, ANSI, ASME, UL
Collection
SwirlFlo
Lead Leaching Certified NSF/ANSI 61
Yes
Location Rating
Wet Location
Made in America
Yes
Manufacturer Warranty
1 Year Limited
Outdoor Approved
Yes
