Item # bci1148839

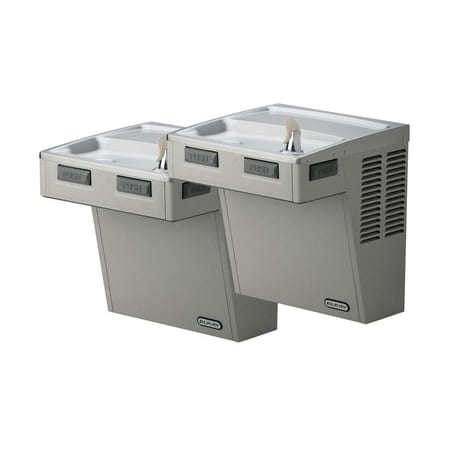

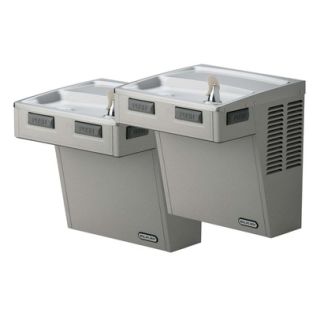

Elkay 8 GPH ADA Reverse Wall Mount Bi-Level Cooler with Mechanical Push Bar

Model: EMABFTLR8LC

$1,719.00
Finish: Choose Finish
  • Light Gray Granite
  • Light Gray Granite
    Light Gray Granite
    $1,719.00
    Special Order

Free Shipping!

Leaves the Warehouse in 7 to 11 weeks
Special Order

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

  • Sink Trim
    Sink Trim Recommended
  • Water Filter
    Water Filter Recommended

Elkay 8 GPH ADA Reverse Wall Mount Bi-Level Cooler with Mechanical Push Bar

Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.

Product Features:

  • Self contained double wall hung water cooler
  • Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
  • Hooded stream projector
  • Self closing push bars on front, left and right sides
  • Built-In flow regulator from 20 to 105 psi
  • No lead design
  • ADA compliant
  • Construction
    • Frame - Galvanized steel chassis supports fountain top and all working mechanisms. No operating parts are connected
    • Filtered: No

This product is listed under the following manufacturer number(s):


*Denotes a finish or option that has been discontinued.

Dimensions and Measurements

Cooling Capacity
8 GPH
Flow Rate (GPM)
.13
Gauge
18
Height
23.625 in.
Inlet Diameter
.375 in.
Length
36 in.
Outlet Diameter
1.5 in.
Product Weight
92 lbs.
Water Pressure (Max)
105 PSI
Water Pressure (Min)
20 PSI
Width
18.625 in.

Included Components

Bottle Filler Included
No
Cooling Unit
Yes

Characteristics and Features

Antimicrobial
Yes
Bi-Level
Yes
Bubbler Type
FlexiGuard Safety
Control Type
Bar
Filtered
No
Freeze Resistant
No
Installation Type
Wall Mounted
Material
Stainless Steel
Number of Stations
2
Pet Friendly
No
Vandal Resistant
No

Electrical and Operational Information

Amperage
4
Electrical Phases
1
Frequency
60 Hertz
Voltage
115
Wattage
370

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.19.3
Certifications
NSF, ANSI, ASME, UL
Lead Leaching Certified NSF/ANSI 61
Yes
Location Rating
Dry Location
Made in America
Yes
Manufacturer Warranty
1 Year Limited
Outdoor Approved
No
