Item # bci3071196

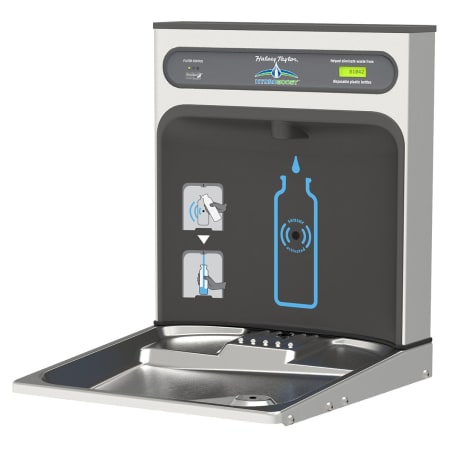

Halsey Taylor HydroBoost® Bottle Filler Retrofit for Drinking Fountain

Model: HTHB-HAC-RF

$987.00
Finish: Choose Finish
  • Stainless Steel
    Stainless Steel
    $987.00
    41 In Stock

Free Shipping!

41 In Stock

Product Overview

Halsey Taylor HTHB-HAC-RF Features:

  • Covered under Halsey Taylor's 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
  • Bottle filling station designed to retro-fit existing HAC push-bar activated models
  • Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew
  • Sensor activated HydroBoost® bottle filling station with 1.1/1.5 GPM flow rate included

Halsey Taylor HTHB-HAC-RF Construction:

  • 300 series nickel bearing stainless steel basin polished to a lustrous satin finish
  • Contoured basin offers large area to minimize splashing when in use
  • Stainless Steel Basin - One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
  • Mounting frame is manufactured of corrosion resistant, galvanized steel. Open construction designed for ease of installation.
  • Double Bubbler™ with non-removable anti-squirt feature and integral hood

Halsey Taylor HTHBHACRF Specifications:

  • Rated Watts: 120
  • Full Load Amps: 1
  • Installation: Wall Mounted
  • Height: 26" (base to top of fixture)
  • Length: 17-7/8" (left to most right rim of fixture)
  • Width: 6-3/4" (back to front of fixture)
  • Bottle Filler: Yes

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Height
26 in.
Inlet Diameter
.375 in.
Length
17.875 in.
Outlet Diameter
1.5 in.
Product Weight
32 lbs.
Water Pressure (Max)
105 PSI
Water Pressure (Min)
40 PSI
Width
6.75 in.

Included Components

Bottle Filler Included
Yes
Cooling Unit
No

Characteristics and Features

Antimicrobial
Yes
Bi-Level
No
Control Type
Electronic
Filtered
Yes
Hands Free
Yes
Installation Type
Wall Mounted
Material
Stainless Steel
Number of Stations
1
Pet Friendly
No
Vandal Resistant
No

Electrical and Operational Information

Amperage
1
Frequency
60 Hertz
Voltage
115
Wattage
120

Warranty and Product Information

ADA
Yes
Approved for Commercial Use
Yes
ASME Code
A112.19.3
Certifications
NSF, ASME, UL
Collection
Yes
Lead Leaching Certified NSF/ANSI 61
Yes
Location Rating
Dry Location
Manufacturer Warranty
1 Year Limited
Outdoor Approved
No
