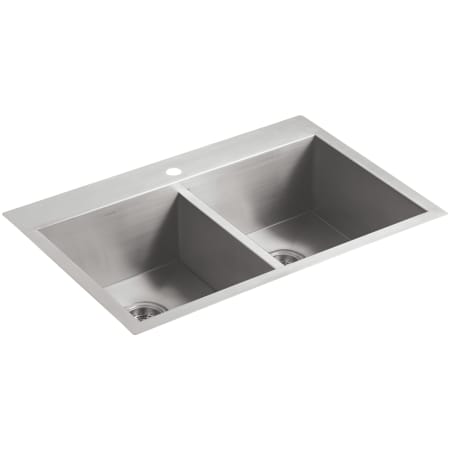

Kohler Vault 33" Double Basin Drop-in / Under-Mount Stainless Steel Kitchen Sink with SilentShield®

Model: K-3820-1-NA

$714.22
Finish: Choose Finish
  • Stainless
    Stainless
    $714.22
    Special Order

Free Shipping!

Special Order

Product Overview

This product has additional required/recommended options. To configure, add to your cart.

Kohler K-3820-1 Key Data:

  • 33"L x 22"W x 9-5/16"H
  • 50/50 Basin Split
  • Drop-in or Undermount Installation

Kohler K-3820-1 Features:

  • Double basin sink with a 50/50 split provides increased versatility for any task
  • Covered under Kohler's limited lifetime warranty
  • Bottom basin rack included
  • The distinctive, modern design of the Vault sink lends a contemporary vibe to any kitchen
  • Hand crafted from 18-gauge stainless steel giving both the aesthetic beauty you want and the durability and longevity you need
  • Featuring drop-in or undermount as installation options, allowing you to choose which install type works better for you
  • Rear drain location increases workspace area in the sink as well as storage area underneath
  • All hardware needed for installation included

Kohler K-3820-1 Technologies / Benefits:

  • SilentShield®: A sound-absorption system found in many Kohler sinks that significantly reduces the noise from clanging dishes and silverware, as well as undesirable noise caused by running water and disposals.

Kohler K-3820-1 Specifications:

  • Height: 9-5/16" (measured from the bottom of the sink to the top of the rim)
  • Overall Width: 22" (measured from the back outer rim to the front outer rim)
  • Overall Length: 33" (measured from the left outer rim to the right outer rim)
  • Basin Width (Left): 16-9/16" (measured from the back inner rim to the front inner rim)
  • Basin Length (Left): 14-9/16" (measured from the left inner rim to the right inner rim)
  • Basin Width (Right): 16-9/16" (measured from the back inner rim to the front inner rim)
  • Basin Length (Right): 14-9/16" (measured from the left inner rim to the right inner rim)
  • Basin Depth (Left): 9" (measured from center of the basin to the rim)
  • Basin Depth (Right): 9" (measured from center of the basin to the rim)
  • Installation Type: Drop-in or Undermount
  • Number of Faucet Holes: 1
  • Drain Connection Size: 3-7/8"
  • Minimum Base Cabinet Width: 36"

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.


This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Basin Depth
9 in.
Basin Depth (Left)
9 in.
Basin Depth (Right)
9 in.
Basin Length (Left)
14.563 in.
Basin Length (Right)
14.563 in.
Basin Width (Left)
16.563 in.
Basin Width (Right)
16.563 in.
Drain Connection
3.875 in.
Faucet Centers
0 in.
Gauge
18
Height
9.313 in.
Length
33 in.
Minimum Cabinet Size
36 in.
Nominal Length
33 in.
Nominal Width
22 in.
Sink Length
33 in.
Width
22 in.

Included Components

Basin Rack Included
No
Basket Strainer Included
No
Colander Included
No
Cutting Board Included
No
Faucet Included
No
Installation Hardware Included
Yes
Soap Dispenser Included
No

Characteristics and Features

Basin Split
50/50
Drain Placement
Rear
Farmhouse
No
Faucet Holes
1
Installation Type
Undermount, Drop In
Material
Stainless Steel
Number Of Basins
2
Overflow
Yes
Sink Shape
Rectangular
Sound Dampening
Yes
Theme
Modern

Warranty and Product Information

ADA
No
ASME Code
A112.19.3
Certifications
ASME, CSA
Collection
Vault
Country Of Origin
USA
CSA Code
B45.4
Manufacturer Warranty
Limited Lifetime
