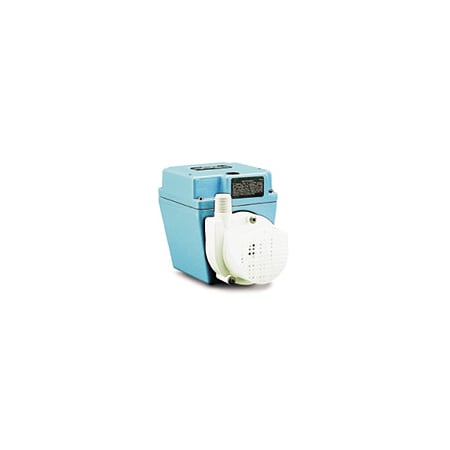

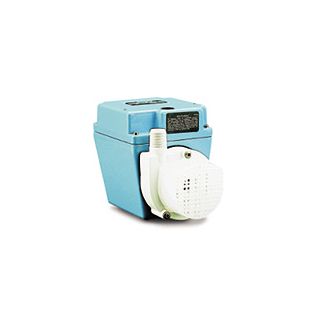

Little Giant 3E-12N 8.3 GPM, 1/15 HP Dual-Purpose Submersible Fountain Pump

Model: 503103

$342.02
Finish: Choose Finish
  • Steel
  • Steel
    Steel
    $342.02
    Special Order

Free Shipping on LTL freight orders over $1,499.00!

Leaves the Warehouse in 6 to 11 weeks
Special Order

Product Overview

Product Features:

  • 3E-12N oil-filled direct pump for water transfer/recirculation/displays and machine tool coolants, designed for submersible or in-line use
  • 1/15 HP oil-filled motor
  • Features an epoxy coated cast aluminum housing and cover, nylon volute, aluminum backplate, viton shaft seal, and polyethylene screen
  • UL listed
  • Features a 1 year residential warranty

Product Specifications:

  • Capacity: 500 GPH @ 1'
  • Shut Off: 17'
  • Liquid temperature: Up to 120 degrees F
  • Discharge: 1/4" MNPT
  • Intake: 1/2" FNPT
  • Impeller: Nylon
  • Cord Length: 6'

This product is listed under the following manufacturer number(s):

Dimensions and Measurements

Cord Length
72 in.
Depth
7 in.
Flow Rate (GPM)
20
Flow Rate by Feet of Head
500 gal / 1 ft, 210 gal / 10 ft, 337 gal / 5 ft, 65 gal / 15 ft, 435 gal / 3 ft
Height
5.4, 5.5 in.
Length
7 in.
Product Weight
8 lbs.
Shut Off Height
17.3 in.
Shut Off Pressure
7.5
Width
4.4, 4.5 in.

Characteristics and Features

Configuration
Dual Purpose Pump
Shutoff Head in Feet
17.3
Submersible
Yes

Electrical and Operational Information

Amperage
3.2, 5
Frequency
60 Hertz
Horsepower
0.066, 0.16
Voltage
115
Wattage
200

Warranty and Product Information

CARB approved
Yes
Certifications
UL
