Item # bci2712964

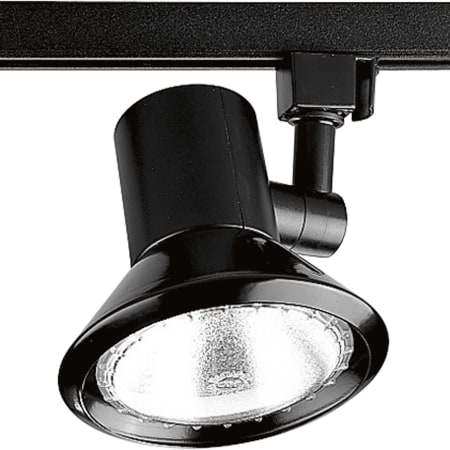

Progress Lighting Alpha Trak Shallow Profile Head - for PAR30 Bulbs up to 75W
Model: P9220-28
from the Alpha Trak Collection
$27.86
Finish: Choose Finish
- White$27.86182 In Stock
Free Shipping on orders over $49.00!
Product Overview
This product has additional required/recommended options. To configure, add to your cart.
- Track Sections Required
- Power Supply Required
- Connectors Recommended
Alpha Trak heads are designed to fill a variety of lighting needs in residential or commercial settings. Heads are available in a variety of styles, including flatback, roundback, gimbal, and free-form. Pair your choice of heads with Alpha Trak sections and connectors to create a complete system.
See the Alpha Trak Buying Guide PDF for more information about putting your system together.
Features:
- Shallow-profile design
- 358° horizontal rotation
- 0 to 90° vertical swing
- Injection molded polycarbonate head (Non-metallic)
- Aluminum shade fully covers lamp
- Compatible with PAR30 lamps up to 75W (Not Included)
- UL and CUL Listed
- Covered under a 1 year limited manufacturer warranty
Dimensions:
- Height: 5 1/2"
- Head Diameter: 4 3/4"
Mounting Options:
- Purchase AlphaTrak sections: P9103 (2'), P9104 (4'), P9105 (8'), or P9106 (12'). See the PDF buying guide for appropriate connectors based on your planned layout.
- For surface power, use the P9123 floating canopy or the P8753/P9107 flush mount canopy kit with P8730/P9108 power feed.
- For end power, use the P8745 end feed, or the P8760/P9109 with the P8770 outlet box for T-bar ceilings.
- For remote power, use the P8742/P9121 remote power feed, or the P8724/P9111 cord and plug kit when an outlet box is not close enough.
- All AlphaTrak heads can be mounted individually using the P8734/P9113 Monopoint canopy without needing any other components.
Additional Progress Lighting Links
This product is listed under the following manufacturer number(s):
*Denotes a finish or option that has been discontinued.
Manufacturer Resources
Dimensions and Measurements
Height
5.5 in.
Product Weight
1 lbs.
Width
4.75 in.
Included Components
Bulb Included
No
Characteristics and Features
Base Color
Black, White
Bulb Base
Medium (E26)
Bulb Shape
PAR30
Bulb Visible
Yes
Light Direction
Adjustable Lighting
Material
Steel
Number of Bulbs
1
Number of Light Source(s)
1
System Type
Alpha Trak
Theme
Contemporary
Electrical and Operational Information
Power Source
Hardwired
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
75
Watts Per Bulb
75
Warranty and Product Information
Certifications
UL
Country Of Origin
China
Energy Star
No
Location Rating
Dry Location
Manufacturer Warranty
1 Year Limited
Title 20 Compliant
Yes
Title 24
No
