Item # bci1720537

Zurn Wall Carrier / Left-Handed Adjustable Horizontal Siphon Jet No-Hub Narrow Wall System

Model: ZN1203-NL4

$2,092.82
Finish: Choose Finish
  • N/A
  • N/A
    N/A
    $2,092.82
    Special Order

Free Shipping!

Special Order

Product Overview

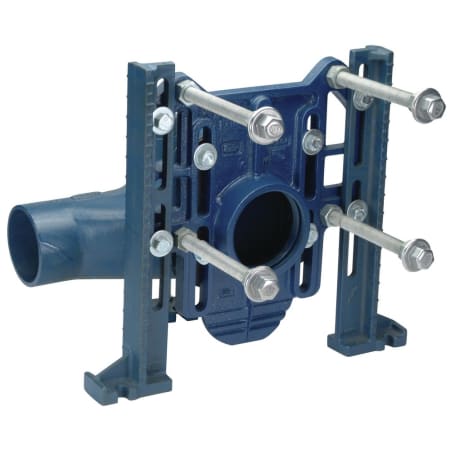

Zurn ZN1203-NL4 Wall Carrier / Left-Handed Adjustable Horizontal Siphon Jet No-Hub Narrow Wall System

Note: For commercial toilets only

Description

Narrow Wall Adjustable, horizontal siphon jet water closet "Rigid System" with 4" No-Hub connections. Complete with Dura-Coated cast iron right hand or left hand main fitting, with 2" vent, adjustable gasketed chase saver face plate, floor mounted foot supports, corrosion resistant ABS coupling with integral test cap, fixture bolts, trim, stud protectors, and bonded "Neo-Seal" gasket. Carrier complies with all applicable requirements of ASME A112.6.1M up to a 300-Lb. load.

Specifications

  • Bracket Height: 17-1/4"
  • Integral Finish: Painted (Zurn Blue 296U)
  • Manufacturer Product Line: Carrier Systems
  • Material: Cast Iron
  • Maximum Inlet Height: 4-1/2"
  • Outlet Orientation: Horizontal
  • Standard Connection Diameter: 4"
  • Standard Inlet Diameter: 2"

This product is listed under the following manufacturer number(s):

Warranty and Product Information

Approved for Commercial Use
Yes
